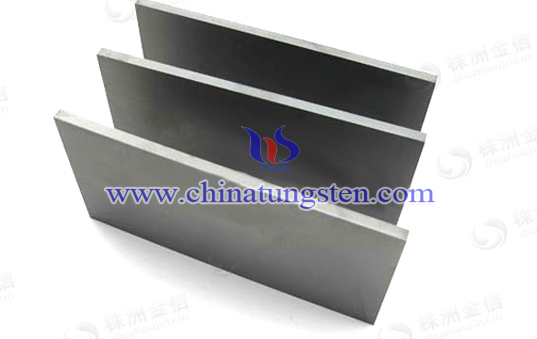

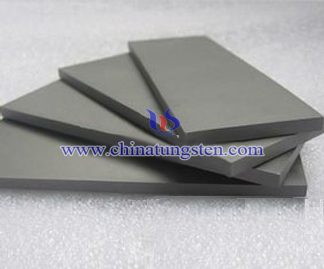

Tungsten Carbide Flat Applications
| Grade | Density (g/cm3) |
TRS (N/mm2) |
Hardness (HRA) |
Application |
| YF10.1 | 14.80—15.15 | ≥1880 | ≥91.0 | Suitable for drawing dies to draw small diameter ferrous wire and non-ferrous metal wire a high speed |
| YF10.2 | 14.30—14.65 | ≥2430 | ≥91.8 | Suitable for strips to make wood-working tools |
| YL80 | 13.75—14.05 | ≥3200 | ≥89.5 | Suitable for plates to make die blanks |
| YL80.1 | 14.70—14.90 | ≥2020 | ≥89.5 | High abrasion resistance, used in powder metallurgy mould etc. |
| YL80.2 | 14.00—14.20 | ≥2900 | ≥86.5 | Suitable for making small watch parts, punching dies of instrument, roll, cut the trigger. |
| YL80.3 | 13.50—13.80 | ≥2540 | ≥85.0 | Suitable for producing punching plate under high stress. |
| YL90 | 13.50—13.70 | ≥2500 | ≥82.5 | With high strength and toughness, suitable for making large size reducing die, better than YG20C. |
| YL90.1 | 13.90—14.10 | ≥2340 | ≥84.5 | Suitable for die blanks for reducing diameter with large dimension and dies blanks assembled of six pieces |
| YL90.2 | 13.70—13.90 | ≥2400 | ≥83.0 | Suitable for die blanks for reducing diameter with middle dimension |
| YL90.4 | 13.20—13.40 | ≥2600 | ≥82.0 | High strength and toughness, used to cold heading mould, cold impacting mould and cold press mould with high pressing |
| YL90.5 | 13.00—13.20 | ≥2760 | ≥81.0 | Good impact resistance, fatigue resistan,used for high loading punching die |
| YL90L | 13.20—13.40 | ≥2550 | ≥81.5 | Used for general cold screw scissors die and cutting shear blade tips |
| YG6A | 14.80—15.10 | ≥1580 | ≥91.5 | Suitable for semi-finishing of cast, nonferrous metal and low-alloy steel |
| YG6X | 14.70—15.10 | ≥1600 | ≥91.0 | Suitable for drawing dies to draw steel wire, on-ferrous wire and rods with small diameter at a high speed |
| YG6 | 14.70—15.05 | ≥1670 | ≥89.5 | Suitable for drawing dies to draw steel wire, on-ferrous wire under a diameter of 20mm and tubes under a diameter of 10mm |
| YG8 | 14.60—14.8 | ≥1840 | ≥89 | Suitable for drawing dies to draw steel wire, on-ferrous wire and alloy rods, tubes, also for making wear parts, tools(such as muzzles, grinders, drills ect.) |
| YG15 | 13.90—14.20 | ≥2700 | ≥86.5 | Suitable for drawing dies to draw steel rods and tubes at a high compression ratio, also for heading dies, drills etc. |
| YG20 | 13.40—13.70 | ≥2480 | ≥84.5 | Suitable for punching and heading dies |
