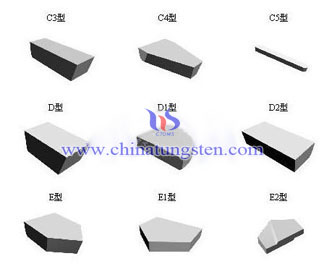

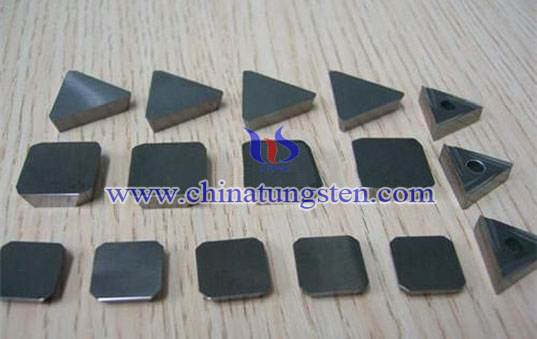

Tungsten Carbide Flat Cutting Tools
Chinatugnsten Online have always devote themselves into offering tungsten carbide products with prominent quality, favorable price and excellent service for our customers. Tungsten carbide flat cutting tools is one kind of our best products. So,we have some of advantages,such as: competitive prices ,shortest delivery time, high quality and supply non-standard size product.
The standard specification as below for your information. Any need,please contact us any time.
| Specifications | |||
| D(mm) | d(mm) | I(mm) | L(mm) |
| 1.0 | 4 | 3 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2.0 | 4 | 6 | 50 |
| 2.5 | 4 | 8 | 50 |
| 3.0 | 3 | 8 | 50 |
| 3.0 | 4 | 8 | 50 |
| 3.5 | 4 | 11 | 50 |
| 4.0 | 4 | 11 | 50 |
| 1.0 | 6 | 3 | 50 |
| 1.5 | 6 | 4 | 50 |
| 2.0 | 6 | 6 | 50 |
| 2.5 | 6 | 6 | 50 |
| 3.0 | 6 | 8 | 50 |
| 3.5 | 6 | 11 | 50 |
| 4.0 | 6 | 11 | 50 |
| 4.5 | 6 | 13 | 50 |
| 5.0 | 5 | 13 | 50 |
| 5.0 | 6 | 13 | 50 |
| 6.0 | 6 | 15 | 50 |
| 7.0 | 8 | 20 | 60 |
| 8.0 | 8 | 20 | 60 |
| 9.0 | 10 | 25 | 75 |
| 10.0 | 10 | 25 | 75 |
| 12.0 | 12 | 30 | 75 |
| 14.0 | 14 | 45 | 100 |
| 16.0 | 16 | 45 | 100 |
| 18.0 | 18 | 45 | 100 |
| 20.0 | 20 | 45 | 100 |
